Connecting a Monitor or TV

“Materials in this manual have been reproduced with the permission of Persistent Systems, LLC, Copyright © 2026. References to Wave Relay® are made with the permission of Persistent Systems, LLC, the sole owner of the Wave Relay® registered trademark and Wave Relay® technology, and do not constitute or imply endorsement by the United States Government.”

Overview​

How to connect a monitor or TV with HDMI input to the MPU5, sourced from the official MPU5 Basic Operator Manual (Part V: Device Operation).

Manual Reference​

Parts list​

  • Monitor or TV with HDMI Input
  • 22-Pin to Video Out cable (CBL-DATA-3003)
  • HDMI Cable

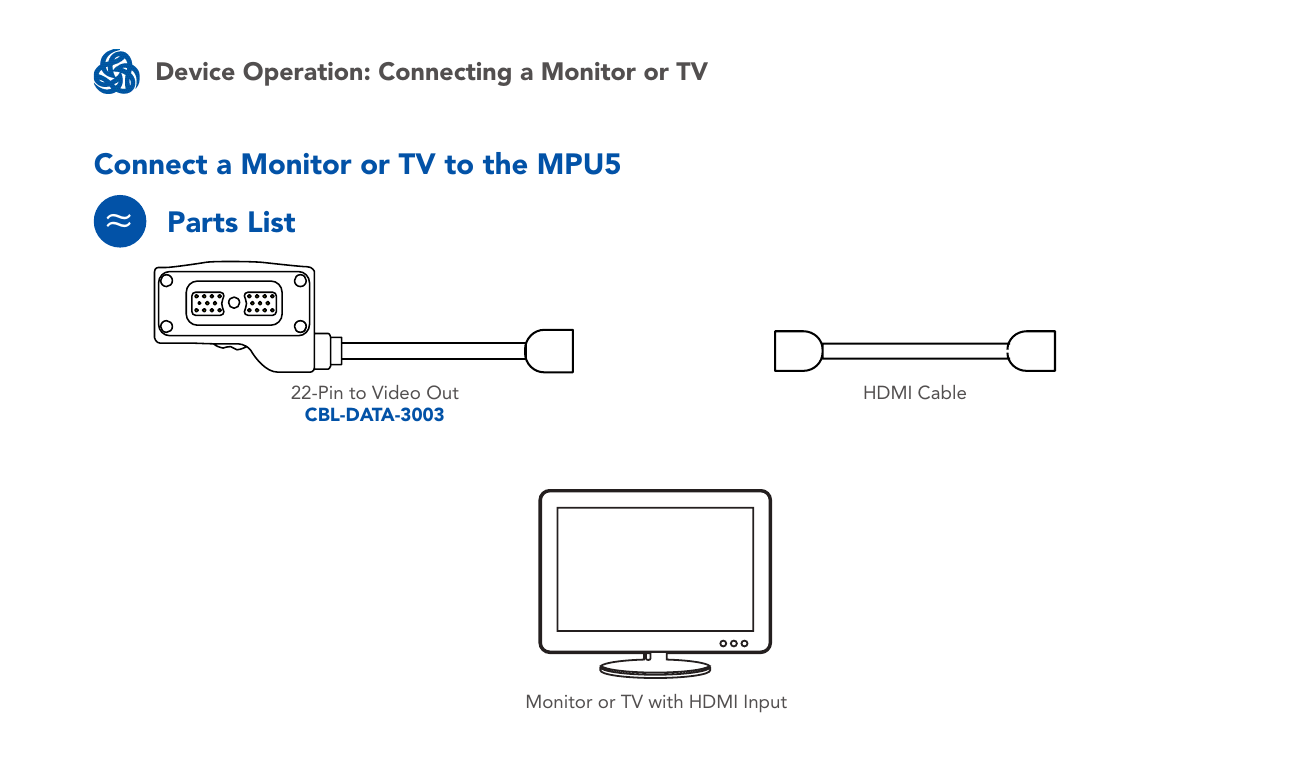

Parts list — monitor/TV, video out cable, HDMI cable

Connect the monitor or TV​

  1. Connect CBL-DATA-3003 to the DATA side connector on the MPU5.
  2. Connect an HDMI cable to the HDMI output on CBL-DATA-3003.
  3. Connect the HDMI cable to the HDMI Input on the monitor or TV.

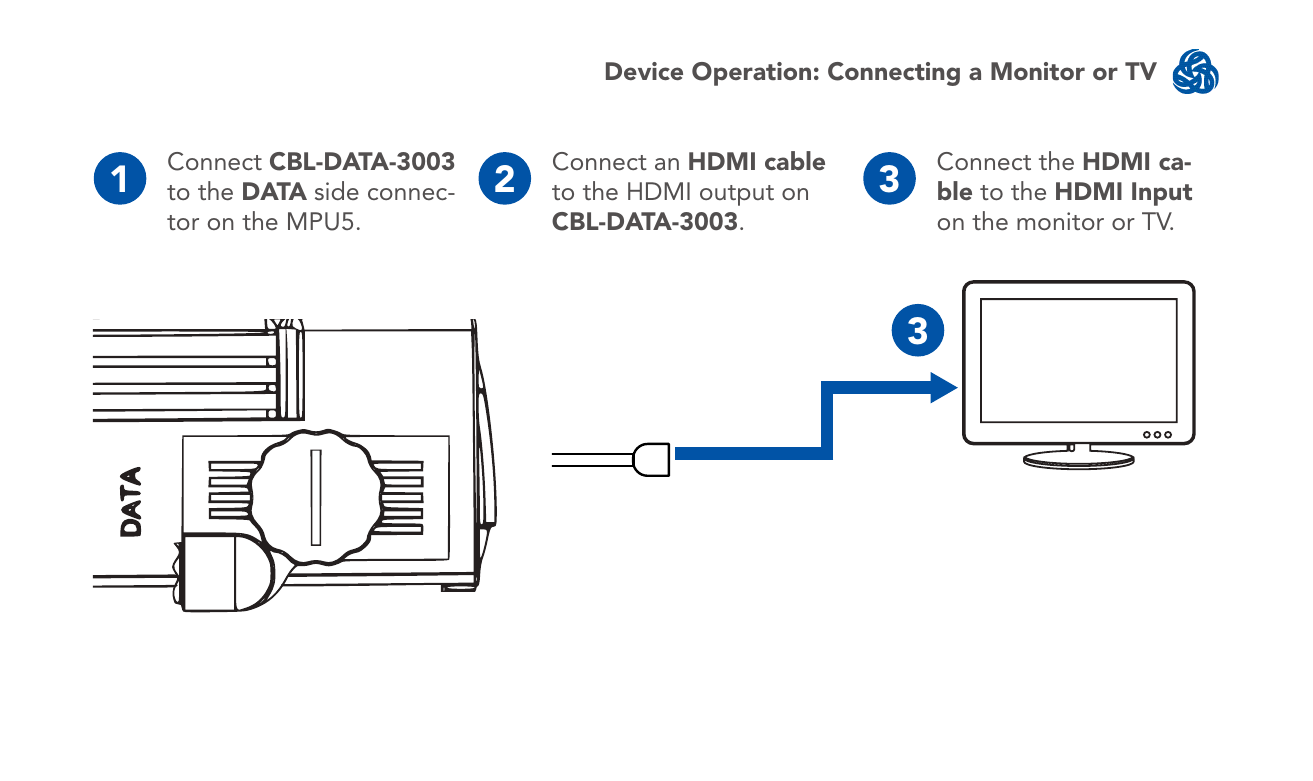

Connecting a monitor or TV to the MPU5

Troubleshooting: no video on monitor or TV​

  1. Ensure that the monitor or TV is powered on.
  2. Ensure that all cables are connected properly.
  3. Ensure that the monitor or TV is set to the correct HDMI input.
  4. Reboot the node.

Source​

MPU5 (WR-5100) Basic Operator Manual, v3.2, 03EN073 Rev. P — Part V: Device Operation, pages 106–108.
